DMX9720XDS floating screen



DMX9720XDS Best Product - EISA In-Car Headunit 2020-2021
Transform your dashboard with KENWOOD's 10.1" high-definitation touch screen floating panel multimedia system

The DMX9720XDS mixes user-friendly features with a high-quality design and premium sound. Its 10.1in anti-reflection HD touchscreen has an intuitive, customisable interface that’s the gateway to its extensive talents, including wireless or wired Apple CarPlay, Android Auto and Android smartphone mirroring integration, and support for up to four cameras for a full-angle view.

DEALER LOCATOR

line 1

line 1

DMX9720XDS icons 1

DMX9720XDS icons 2

Key Features

•  Wireless: Apple CarPlay, Android Auto, Android mirroring (Mirrorcast)
•  Wired: Apple CarPlay, Android Auto, Android Mirroring with touch control
•  DAB+ / FM / AM (LW/MW) radio
•  Mechless system (No CD/DVD mechanism)
•  Bluetooth hands-free & audio streaming LDAC
•  1 x Rear USB input
•  High speed USB 2.0 port
•  13-Band EQ
•  Front/Rear HD camera input with optional CMOS-740HD
•  Rear view camera parking guides when using an optional rear camera
•  3 Preouts at 5V
•  AV Input x 1 / Cam input x 1 / Video output x 1
•  Dimensions Sub/Front Panel (W x H): 261.6mm x 181.1mm
•  Dimensions Main Unit (W x H x D): 178 x 100 x 155mm



Optional Extras

•  CMOS-740HD HD front/rear view camera
•  Dash cam linkage with the DRV-N520
•  CA-C3AV RCA AV cable
•  CX-DAB1 DAB glass mount antenna

line 1

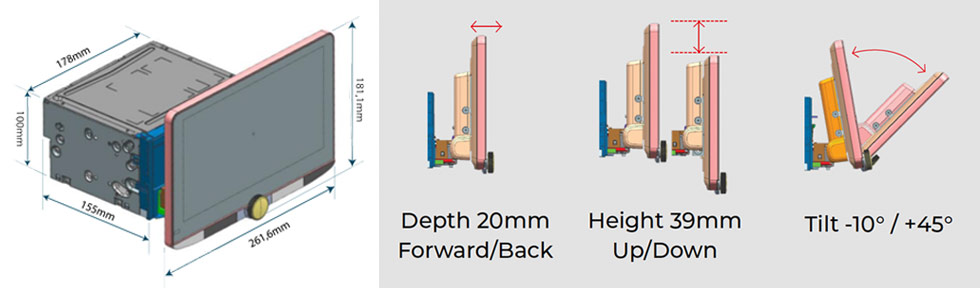

Adjustable 3-Way Display Position

The robust floating mechanism generates less vibration even on a rough road. It can be installed regardless of the size of the cluster panel opening. In addition, it is possible to adjust the position of the display in the following 3 ways, so you can fit a large screen in more vehicles.

3-step floating panel adjustment



line 1

HD Front/Rear Camera Input

The optional CMOS-740HD camera can be connected to the DMX9720XDS front or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition. The camera's built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front/rear camera option available.

3-step floating panel adjustment

line 1

High Resolution Wireless Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.
