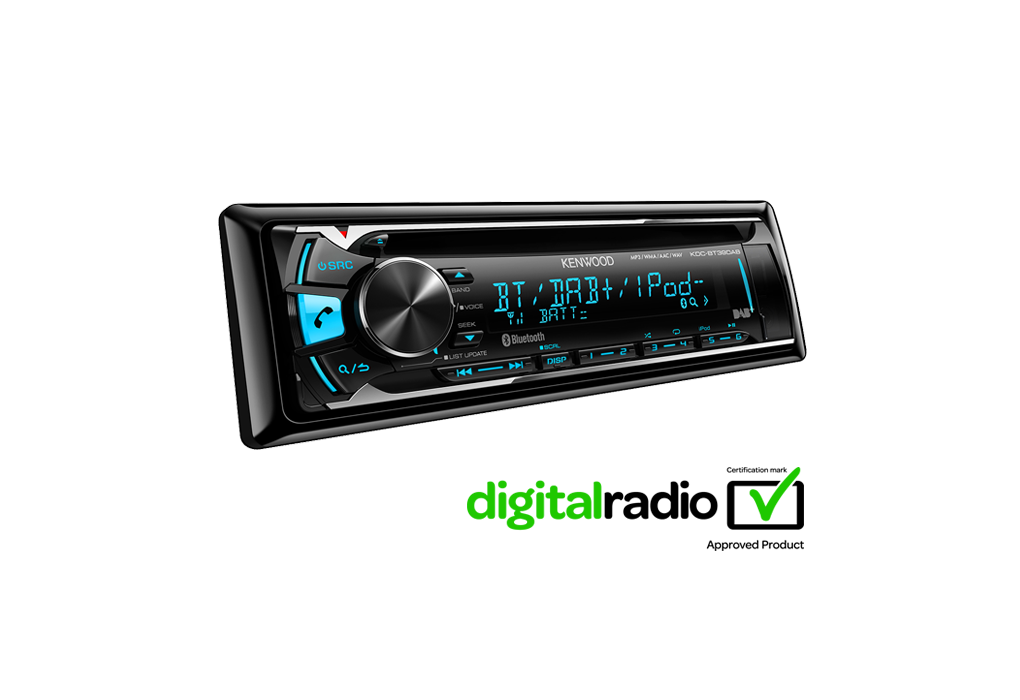

KDC-BT39DAB
CD-Receiver with DAB tuner & Bluetooth Built-in
This product is exclusive to Halfords only.
Key Features
| Digital Radio Technology (DAB+) Built-in |
| Bluetooth built-in (HFP V1.6 & A2DP) |
| 13 + 8 digits, dual-line LCD display |
| Variable colour illumination |
| Made for iPod / iPhone |
| Android Open Accessory support (AOA) for usb audio |
| 1 RCA preout (2,5V) |
| 3 band graphic equalizer, 8 EQ Presets |
| Wired steeringwheel terminal |
| English/Russian(Menu & TAG), Greek(TAG) text display |
General Features
| DIN Size | 1 DIN |
| Detachable Faceplate | Yes |
| Faceplate Mechanism | Full Detachable Faceplate |
| Multi control wheel | Yes |
| Accent key | Receive/end a call |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| Digital Clock (24H) | Yes |
| All-off Select (20/40/60 minutes) | Yes |
| Built-in Connector | Molex 16 pin |
| ISO connector | Yes |
| Bluetooth unit built-in | Yes |
| USB interface x 1 | Yes, Front |
| Firmware upgreadable | Yes |
Display Features
| Display Type | Liquid Crystal Display (LCD) |
| Display Layout | 13 digits + 8 digits |
| Display Illumination | light-emitting diode (LED) |
| Variable Illumination | Yes |
| Dimmer Control | Display & Key (Manual) |
| Brightness control | |
| Colour control | Yes |
| Demo Mode | Yes |
| Menu text in selectable language | English/Russian |
| TAG Language Display | English/Russian/Greek |
Cosmetics features
| Front/edge | Piano black |
| Dress plate | Piano Black |
| Preset key finish | Piano Black |
| Escutcheon finish | Black Injection |
| Volume & operation knob or wheel | Piano black |
| Volume & operation knob illumination | Variable colour |
| Triangle Illumination | Red |
| Front terminals dust cover | Yes |
| Key illumination | variable colour |
| Illumination of USB & AUX terminals | Variable colour |
| Display illumination | Variable Colour |
| Variable color illumination | Yes |
Tuner Features
| FM Reception | Yes |
| FM Stereo / Mono Selector | Yes |
| AM (MW/LW) Reception | Yes |
| Tuning mode | |
| Up/Down Seek/Scan | Yes |
| Station Select | List |
| Presets | 24 Presets (18FM / 3LW / 3MW) |
| Mixed preset memory (FM & AM) | 6 presets |
| Automatic Memory Entry (AME) | Yes |
| Tuner Preset Back-up Memory | Yes |
| Tuner preset/recall key | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
CE DAB tuner features
| DAB+ tuner built-in | Yes |
| DAB priority | Yes |
| DAB-DAB/DAB-FM auto switch | Yes |
| DAB-AF (Alternative frequency) | Yes |
| Tuning mode / Seek mode | Auto1/Auto2/Manual |
| Service preset | 6 ch * 3 bank presets, |
| Auto service memory (AME) | Yes |
| Service list by alphabet order | Yes |
| Intelligent seek | Yes |
| Ensemble seek | Yes |
| DAB-RDS integrated TI | Yes |
| TMC (Traffic Message Channel) support | Yes |
| Audio interrupt standby by announcement | Yes |
| DLS (Dynamic Label) | Yes |
| DRC (Dynamic Range Control) | Yes |
| DMB (Digital Multimedia Broadcasting) support | Yes |
| PTY (Programme Type) search | Yes |
| PTY (Programme Type) watch | Yes |
| Audio interrupt standby by PTY | Yes |
| TPEG (Transport Protocol Experts Group) support | Yes |
| Antenna power supply on/off switch | Yes |
| DAB antenna included | Yes, SMB terminal |
| Digital Radio Certification Mark | Yes |
Playable Audio File
CD Features
| D.A.C. processing | 16 bit |
| 0 bit Mute | Yes |
| Random Function | |
| Repeat Function | |
| Scan Function | |
| Compatible with Kenwood Music Editor Lite | Yes |
USB Features
| USB terminal | Yes, Front |
| USB Type | USB 1.1/USB 2.0 Full Speed |
| Drive Change | Yes, up to 5 drives |
| Kenwood Music Editor Lite Compatible | Yes |
| Repeat / Random Play | Yes |
| Last Position Memory / Resume | Yes |
| Time code display | Yes |
iPhone Features
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| Alphabet search | Yes |
| Skip search | Yes |
| Direct Search | Yes |
| Control by hand | Yes |
| App & iPod control mode | Yes |
| Aha Radio Control App support | Yes |
| Reverse browsing | Yes |
| Voice Control using Siri. | Yes |
| Works with iPhone * | 3G/3GS/4/4S/5/5S/5C |
| Bluetooth Auto Paring for iPhone | Yes |
| Battery charge + power control | Yes |
| 1A current capability | Yes |
| * Always update to latest Apple firmware |
Audio Features
| Maximum Output Power | 50W x 4 |
| MOSFET Power IC | Yes |
| Auxiliary input | Front Mini-jack |
| Pre-out | 3 RCA |
| Pre-out Output Level | 4V |
| Subwoofer Reference Level Adj. | Yes |
| Source Tone Control & Memory | 5 bands |
| Tone Control | 5 bands |
| Balance/Fader/Loudness Control | Yes |
| Bass Boost Circuit | 3 steps |
| Att.(-20dB) with smooth Volume Return | Yes |
| System Q_SP/M (Preset & Manual Sound Control) | Yes |
| Low- & High-pass Filter | Yes |
| Sound Reconstruction | Yes |
| Drive EQ | Yes |
| Extra EQ | Yes |
Bluetooth General Features
| Hands Free Profile with High Sound Quality | HFP V1.6 |
| Max num. of regist. phones for HFP | 5 phones |
| Audio Streaming (A2DP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Phonebook Access Profile (PBAP) | Yes |
| Object Push Profile (OPP) | Yes |
| Easy pairing function | Yes |
| iPhone automatic pairing via USB | Yes |
| iPhone & Android automatic pairing via USB | Yes |
| Works with iPhone Siri | Yes |
| Phone numbers hold: | up to 400 per registed cell-phone. |
| Phone device status display | Yes |
| Audio device status display | Yes |
| Signal strength display | Yes |
| Remaining battery display | Yes |
| High-quality noise canceling microphone | Rear Wired |
| Bluetooth firmware upgradeable | Yes |
Connectivity
| DC-Cord | Molex to ISO |
| Power Control (P.CON) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| DAB Aerial input | |
| External microphone input | |
| OEM Wired Remote Control ready | Yes |
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.71μV/75ohm (S/N 26dBf) |
| FM Quieting Sensitivity | 2μV/75ohm (S/N 46dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 64dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 28.2μV |
| LW range: 153kHz - 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 50μV |
DAB Tuner specifications
| L Band - Frequency range | 1452.96MHz - 1490.624MHz |
| Band III - Frequency range | 174.928 MHz - 239.2MHz |
| Mode | I, II, III, IV |
| Sensitivity | - 100dBm |
| Signal to noise ratio | 80dB |
| DAB Aerial Connector Type | |
| Output Voltage | 14.4V (11V to 16V allowable) |
| Maximum Current | < 100 mA |
Codec Specs
| MP3 Format | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Format | Compliant with Windows Media Audio |
| AAC Format | AAC-LC “.m4a” files |
| WAV Format | RIFF waveform Audio Format (only for LinearPCM) |
CD Specifications
| Laser Diode | GaAIAs |
| Digital Filter(D/A) | 8 Times Over Sampling |
| Digital/Analogue Converter | 16 Bit |
| Spindle Speed | 500 ~ 200rpm (CLV: 8 times) |
| Wow & Flutter | Below Measurable Limit |
| Frequency Response | 20Hz ~ 20kHz (±1dB) |
| Total Harmonic Distortion | 0.01% (1kHz) |
| Signal to Noise Ratio | 105dB (1kHz) |
| Dynamic Range | 90dB |
| MP3 Decoder | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decoder | Compliant with Windows Media Audio |
| AAC Decoder | AAC-LC".m4a" Files |
USB Specifications
| USB Version compatibility | USB 1.1/2.0 full speed |
| File System | FAT 16/32 |
| Maximum Supply current | 1000mA |
| D/A Converter | 16 bit |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC "m4a" Files |
| WAV Decode | Linear - PCM Files |
Audio Specifications
| Maximum Power | 50 W x 4 |
| Output Power (DIN45324,+B=14.4v) | 30 W x 4 |
| Preout Level | 2500 mV / 10 kOhm, |
| Preout Impedance | ≤ 600 Ohm |
| Speaker Impedance | 4 Ohm ~ 8 Ohm |
| AUX Frequency Response | 20 Hz ~ 20 kHz (±1dB) |
| AUX Maximum Input Voltage | 1200 mV |
| AUX Input Impedance | 30 kOhm |
| Bass Tone Control | 200 Hz ±8 dB |
| Middle Tone Control | 2.5 kHz ±8 dB |
| Treble Tone Control | 12.5 kHz ±8 dB |
Bluetooth specifications
| Technology | bluetooth 2.1 + EDR certified |
| Frequency | 2.402 - 2.48 GHz |
| Output power | +4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range | Line of sight approx. 10 meter |
| Handsfree profile (HFP) | Yes |
| Serial port profile (SPP) | Yes |
| Advanced audio distribution profile (A2DP) | Yes |
| Audio/Video remote control profile (AVRCP) | Yes |
| Object push profile (OPP) | Yes |
| Phonebook access profile (PBAP) | Yes |
Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Molex to ISO) | 25 cm |
| Handsfree Microphone | with 3 m cable |
General Specifications
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dimensions (WxHxD) | 182 x 53 x 159mm |
| Weight, inclu. sleeve & escutcheon | 1.3 kg |
| Unit weight in individual package | 1.6 kg |
| Operation Temperature Range | -0°C ~ 40°C |
