Additional Images

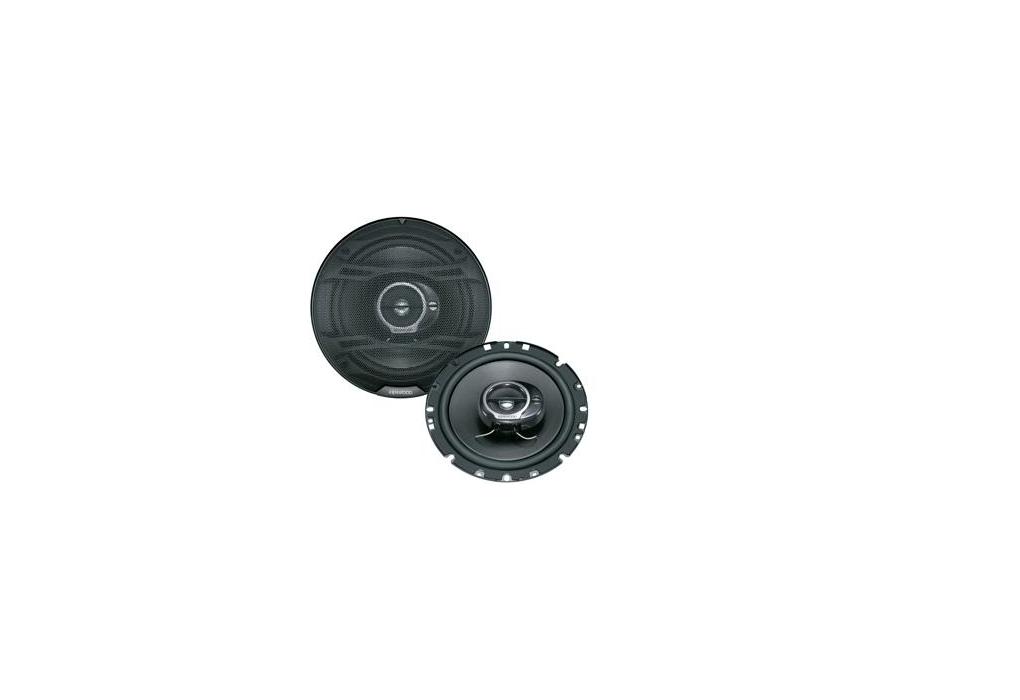

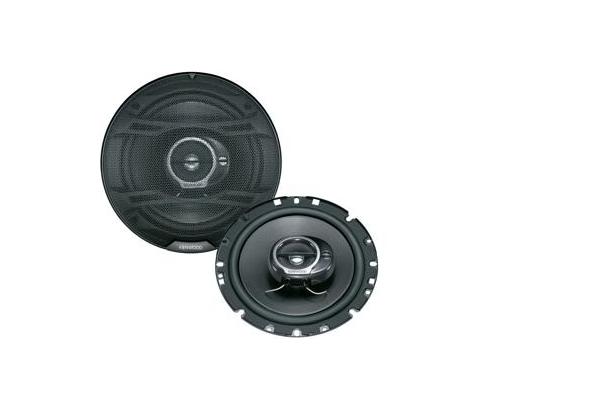

KFC-E1730
3-way Flush Mount Speaker System
DISCONTINUED MODEL
Key Features
| 3-way 3-speaker System |
| 170mm Dimple Shaped Injection P.P.Cone Woofer |
| 40mm Midrange, 10mm Tweeter |
| 300W Peak Input Power |
Speaker Features
| Speaker System | 3-way 3-speaker System |
| Speaker Type | Coaxial |
| Peak Input Power | 300W |
| Rated Input Power | 45W |
| Speaker Size | 170mm |
| Speaker Cone Design | Pearl Mica Injection P.P.Cone |
| Adjustable Tweeter Angle | Yes |
| Magnet Type | Ferrit |
| Terminals | Slide type |
| Installation Capabillity | Door/Rear Deck |
Speaker/woofer Specifications
| Peak Input Power | 300W |
| Maximum Input Power | 120W |
| Rated Input Power | 45W |
| Woofer Cone material | Injection P.P.Cone |
| Speaker Basket | Steel |
| Weight of Magnet | 230gr |
| Speaker Surround | Rubber |
| Sensitivity | 92dB/W/m |
| Frequency Response | 30Hz ~ 25000Hz |
| Speaker Impedance | 4Ω |
| Dimensions (W x H x D) | 174 x 174 x 79.7mm |
| Mouting Hole Diameter Ø | 140mm |
| Mounting Depth | 60.2mm |
| Speaker Weight with Grille (pc.) | 835gr |
| Speaker Weight w/o Grille (pc.) | 795gr |
| Gross Weight | 0gr |
Midrange Speaker Specifications
| Cone Size | 40mm |
| Cone Type | Water Resistant Cone |
| Cross-Over Frequency | 5000Hz |
Tweeter Specifications
| Cone Size | 10mm |
| Cone Material | P.E.I. Balanced Dome |
| Cross-over Frequency | 15000Hz |
Accessories
| 4x25mm Screw: 8 pieces |
| Clip Nut: 8 pieces |
