Additional Images

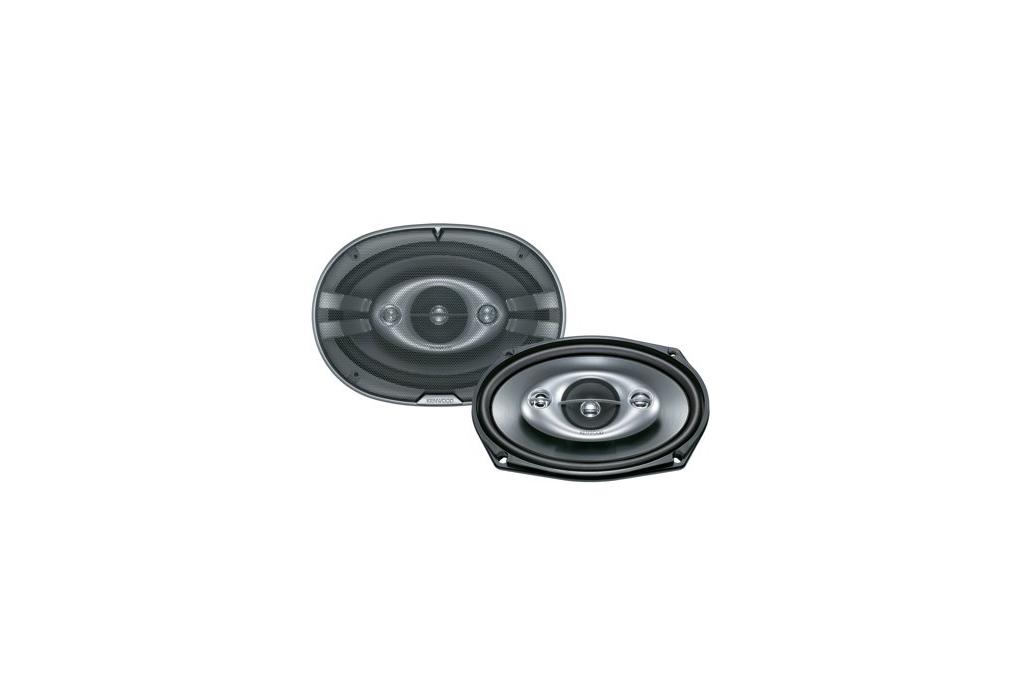

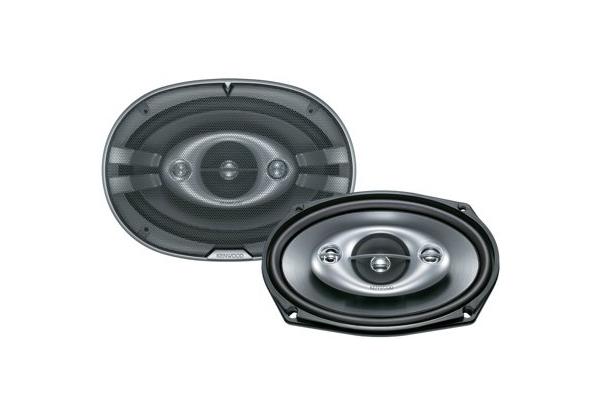

KFC-6970ie
6"x9", 4-way Flush Mount Speaker System
DISCONTINUED MODEL
Key Features
| 4-way 4-speaker System |
| 6"x9" Pearl Mica Injection P.P.Cone |
| 70mm Midrange speaker, 20mm Tweeter, 20mm Super Tweeter |
| Image Enhancer mkII(Patent of KENWOOD since 1987) |
| 400W Peak Input Power |
Speaker Features
| Speaker System | 4-way 4-speaker System |
| Speaker Type | Coaxial |
| Peak Input Power | 400W |
| Rated Input Power | 80W |
| Speaker Size | 6"x9" |
| Speaker Cone Design | Pearl Mica Injection P.P.Cone |
| Image Enhancer | Yes |
| Magnet Type | Ferrit |
| Terminals | Slide type |
| Installation Capabillity | Door/Rear Deck |
Speaker/woofer Specifications
| Peak Input Power | 400W |
| Maximum Input Power | 160W |
| Rated Input Power | 80W |
| Woofer Cone material | Pearl Mica Injection P.P.Cone |
| Speaker Basket | Steel |
| Weight of Magnet | 440gr |
| Speaker Surround | Butyl Rubber |
| Sensitivity | 93dB/W/m |
| Frequency Response | 28Hz ~ 30000Hz |
| Speaker Impedance | 4Ω |
| Dimensions (W x H x D) | 257 x 186 x 112mm |
| Mounting Depth | 77mm |
| Speaker Weight with Grille (pc.) | 1730gr |
| Speaker Weight w/o Grille (pc.) | 1570gr |
| Gross Weight | 4100gr |
Midrange Speaker Specifications
| Cone Size | 70mm |
| Cone Type | Water Resistant Cone |
| Magnet Type | Ferrite |
Tweeter Specifications
| Cone Size | 20mm |
| Cone Material | P.E.T. Balanced Dome |
Super-Tweeter Specifications
| Cone Size | 20mm |
| Cone Material | P.E.T. Balanced Dome |
Accessories
| M4x70mm Screw: 8 pieces | |
| M4 Nut: 8 pieces | |
| Clip Nut 4mm: 8 pieces | |
| Butyl Rubber | |
| M4x70 Screw: 8 pieces | |
| M4 Washer (8mm): 8 pieces | |
| M4 Washer (10mm): 8 pieces | |
| M4 Spring Washer: 8 pieces | |
| Grille assembly included | Yes |
| Speaker cable | 0m |
