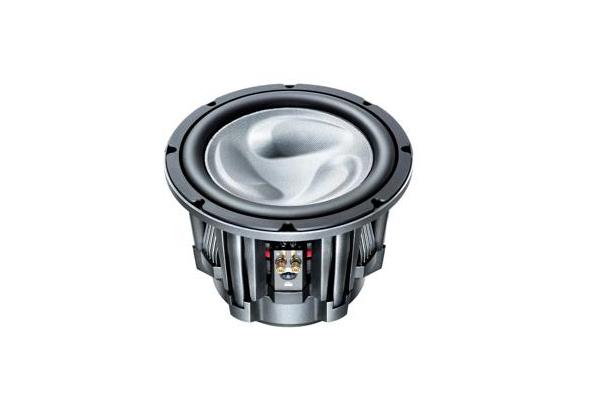

KFC-WPS1300D
  • KFC-WPS1300D

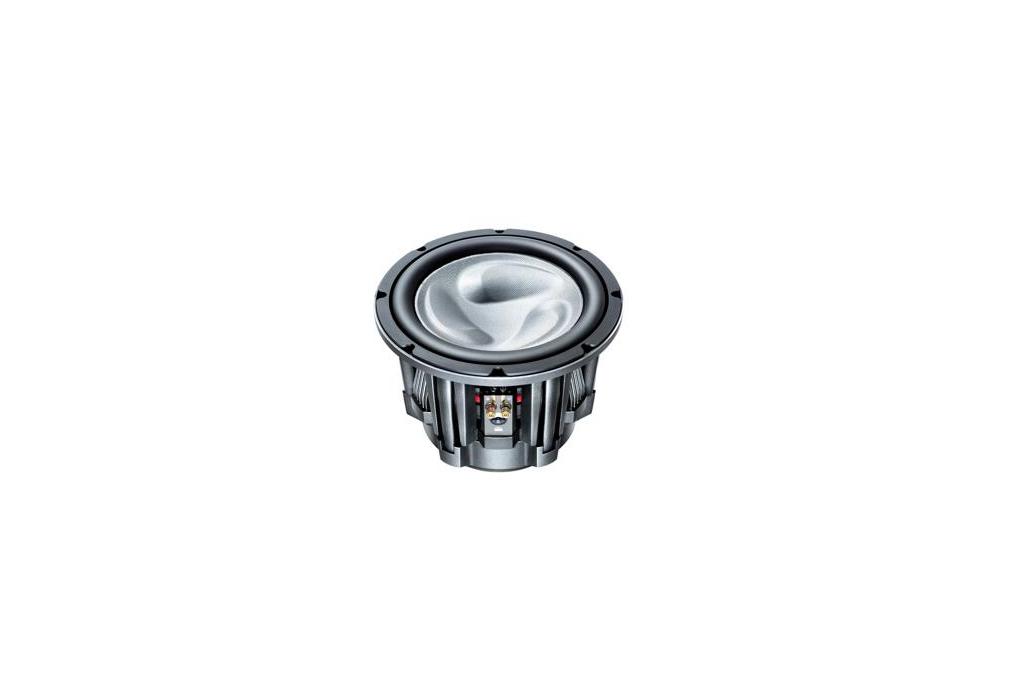

Additional Images

KFC-WPS1300D

Oversized 300mm PBO Diaphragm Cone Woofer

DISCONTINUED MODEL

  • Oversized Dimension
  • Dual Magnet Drive
  • Dual Voice Coil System
  • Overload Protection System
  • Heat Transfer Motor Circuit

Key Features

Oversized 300mm PBO Diaphragm Cone Woofer
Dual Voice Coil System (3Ω 3Ω)
Aluminum Die-Cast Basket
Double-Stacked Magnet System
2000W Peak Input Power

Speaker Features

Speaker TypeSubwoofer
Peak Input Power2000W
Rated Input Power1000W
Speaker Size300mm
Oversized DimensionYes
Speaker Cone DesignTyphone Shape
Magnetic CircuitMulti Bias
Dual Magnet DriveYes
Magnet TypeFerrit
Dual Voice Coil SystemYes, Dual 3 3ohm
Overload Protection SystemYes
TerminalsGold-Plated Screw Lock
Terminals Gold platedYes
Heat Transfer Motor CircuitYes
Magnet CoverAluminum Die-Cast Basket
Gasket Installationone-way (Fixed)
Installation CapabillitySealed/ Ported

Speaker/woofer Specifications

Peak Input Power2000W
Maximum Input Power2000W
Rated Input Power1000W
Woofer Cone materialPBO
Spider Type"CONEX" (Dual)
Speaker BasketAluminum Die-Cast
Weight of Magnet4960gr
Speaker Surround1" Wide "Santoprene"
Sensitivity82dB/W/m
Frequency Response17Hz ~ 1000Hz
Subwoofer Impedance3Ω x 2
Dimensions (W x H x D)346 x 346 x 268.7mm
Mouting Hole Diameter304mm x 0mm
Mounting Depth246mm
Gross Weight18000gr

Subwoofer Parameters

Nominal impedance (Z)3Ω 3Ω
DC resistance (Re)2.6 2.6
Resonant frequency (FSO)30Hz
Mechanical Q factor (QMS)4.03
Electrical Q factor (QES)0.52
Total Q factor (QTS)0.46
Voice coil inductance (LBM)0.7mH
Voice coil diameter (d)80mm
Force factor (BL)22T/m
Peak excursion Xmax13mm
Moving mass (MMS)270gr.
Volume accoustic compliance (VAS)55liter
Piston Area (SD)0.057m²
Displacement13cc
Sealed box volume51.22liter
Sealed Box Dimensions400 x 400 x 320mm ( 21mm thick MDF)(WxHxD)
Vented box volume90.27liter
Vented Box Dimensions600 x 450 x 335mm ( 21mm thick MDF)(WxHxD)
Vented box port diameter/lengthØ 102mm / 178mm

Accessories

6x30mm Screw: 8 pieces
Gasket Tape

Cross-over Network Specifications

Gross Weight18000gr.
